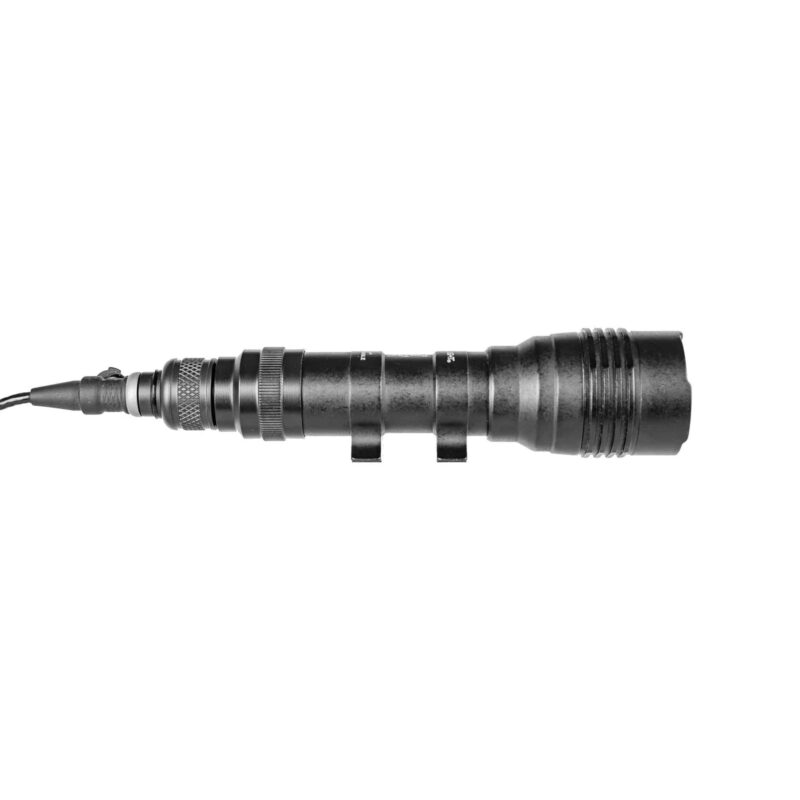

Arisaka Tailcap Adapter Streamlight ProTac HL-X

The Arisaka Tailcap Adapter Streamlight ProTac HL-X allows ProTac Rail Mount HL-X and Rail Mount HL-X Pro lights to use Surefire Scout tailcaps and remote switches. In particular, the ProTac Rail Mount lights can now be used with the Surefire SR-D-IT and Unity AXON dual switches, which are commonly paired with laser/illuminators like the ATPIAL and DBAL series.

One of the main flaws of the ProTac Rail Mount lights is also addressed: Streamlight did not design a front battery spring into the light, so under recoil the battery can come off the front contact and cause the light to flicker or blink. To help prevent this behavior the adapter includes two different o-rings (one for CR123 cells, one for 18650 cells) which can be placed on the back end of the battery before screwing on the adapter. The o-ring ensures the battery cannot move rearward while firing.

Specifications
Diameter: 1.04″
Length: 0.49″ additional length to light (plus tailcap)
Weight: 0.6 oz
Material: 6061-T651 aluminum
Coating: MIL-A-8625 Type III hard coat anodized

Installation Note – This adapter requires the use of a Surefire UE, DS or Unity Tactical Gascap tailcap to function which is not included. It also does not work with the Rail Mount HL-X Laser model. Additionally, we do not recommend the HL-X Laser model because it is not Scout Mount compatible. This product is NOT compatible with the ProTac 2.0 Rail Mount Lights.

Compatible Lights
Streamlight Protac Rail Mount HL-X
Streamlight Protac Rail Mount HL-X Pro

Compatible Tailcaps
Surefire UE (Newest version with black ring where the remote plugs in. The old gray ring version is not compatible)
Surefire DS
Surefire Z68
Unity Gascap USB-C

Compatible Remotes (with Surefire UE or DS Tailcap)
Surefire ST07
Surefire SR07
Surefire SR-D-IT
Unity TAPS
Unity Hot Button
Unity Axon (Surefire plug
Unity Axon SL (Surefire plug)
Modlite Modbutton
Modlite Modbutton Lite (Surefire plug)

Compatible Remotes (with Unity Gascap USB-C Tailcap)
Unity Axon USB-C
Unity Axon SL USB-C
Modbutton Lite USB-C
