Arisaka Offset Scout Mount M-LOK

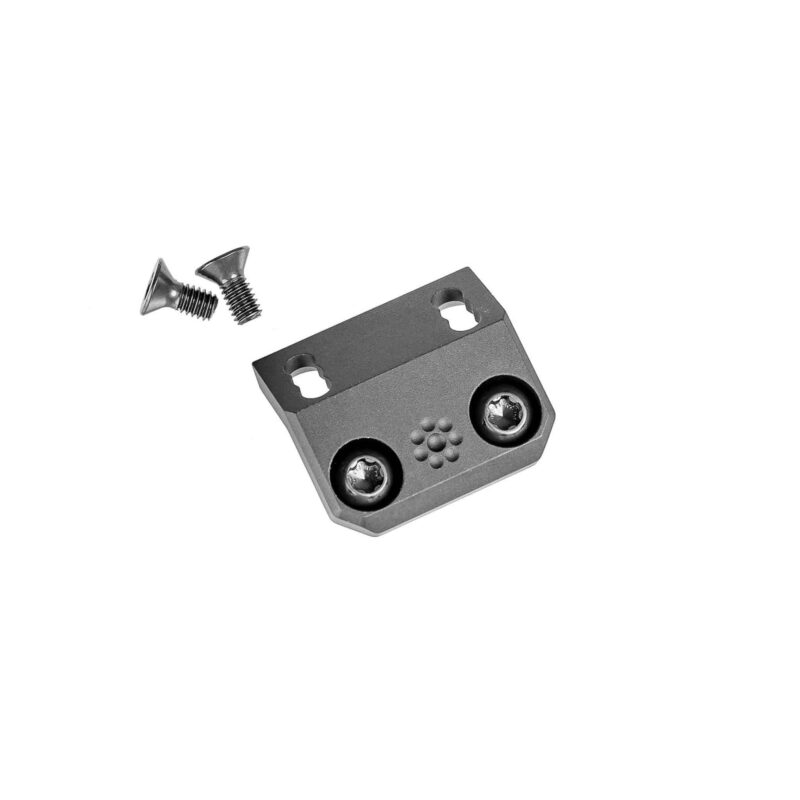

The Arisaka Offset Scout Mount M-LOK is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series Lights, the Streamlight ProTac Rail Mount 1, 2 and HL-X (non-laser), and Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-LOK handguards. The Offset Scout Mount is very low profile at less than 0.20″ thick.

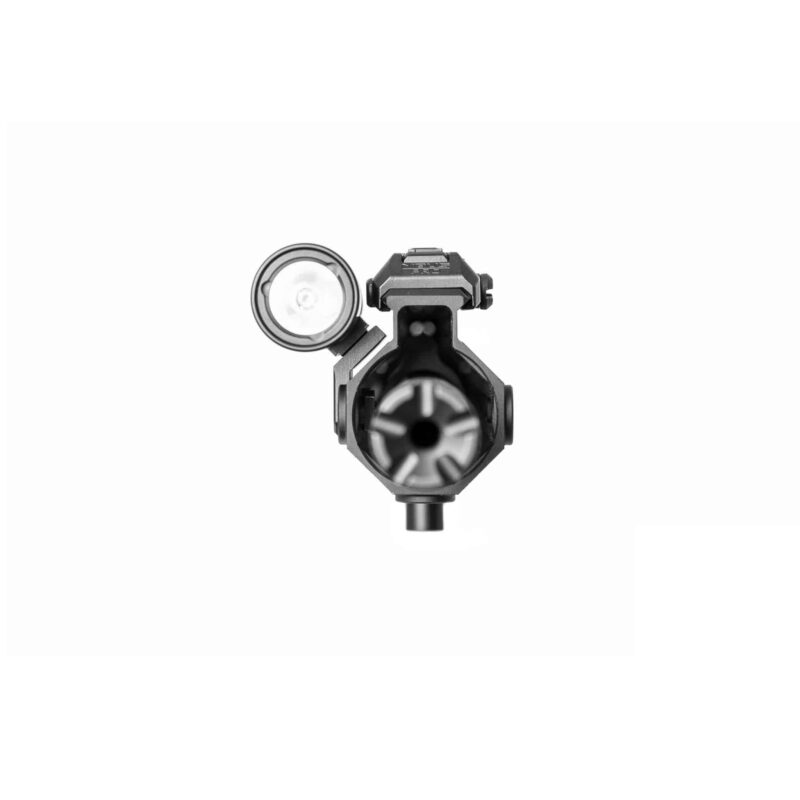

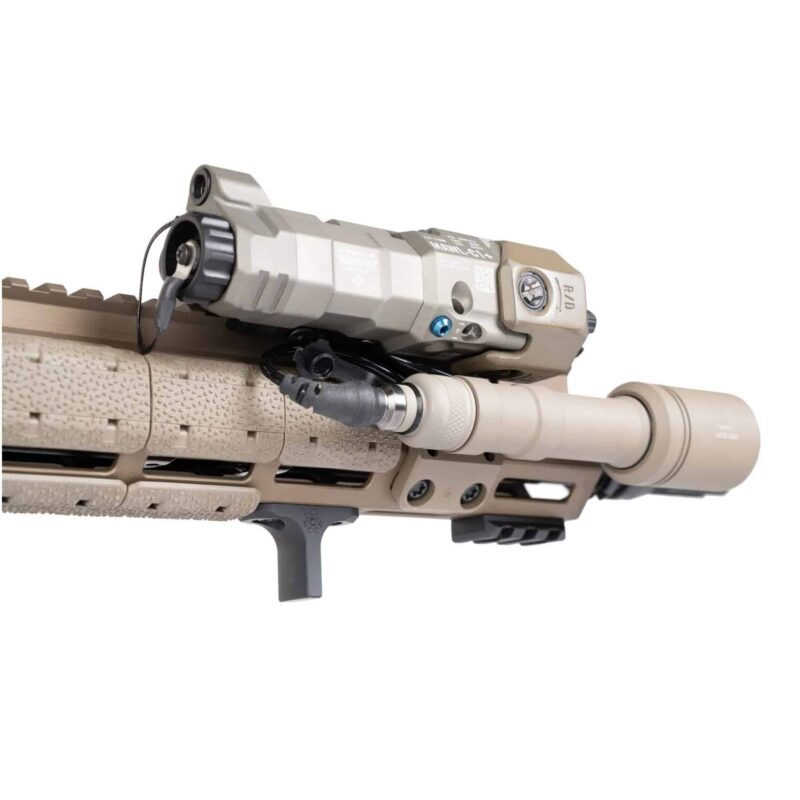

When used on the side mounting surfaces of M-LOK handguards, the Offset Scout Mount places the light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards, the light is located at approximately the 4:30 or 6:30 clock positions.

Specifications

• Length: 1.265″
• Weight: 0.4 oz
• Material: 6061-T651 aluminum
• Coating: MIL-A-8625 Type III hard coat anodized
•  Includes necessary screws to attach light body to mount

Installation
Requires a T20 Torx or IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243. Distance from center of M-LOK screw hole to 45 degree angle is 0.405″.

Compatible with most M-LOK handguards. For a list of compatible lights and handguards check out the manufacturer’s site here.
