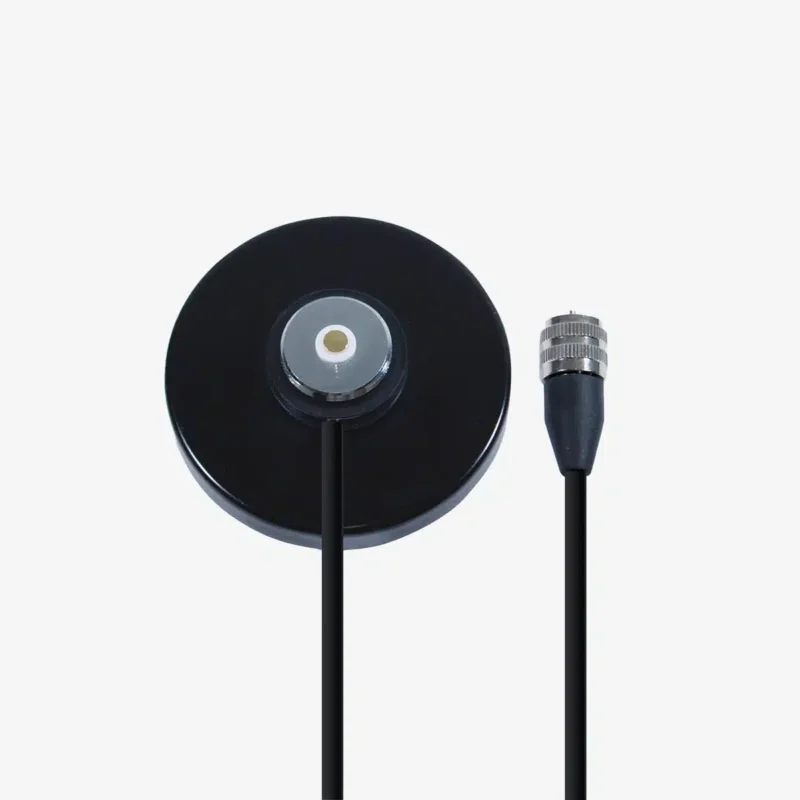

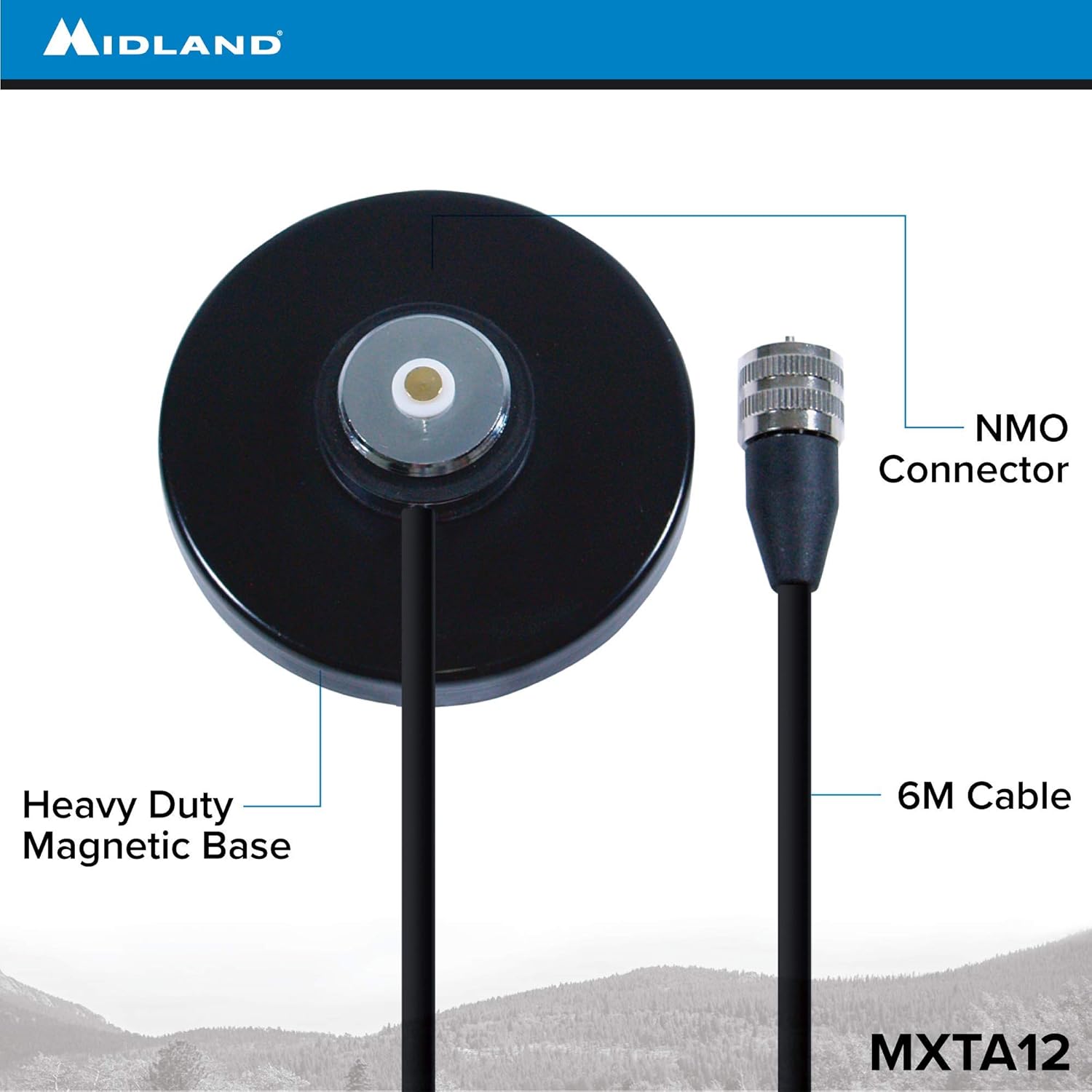

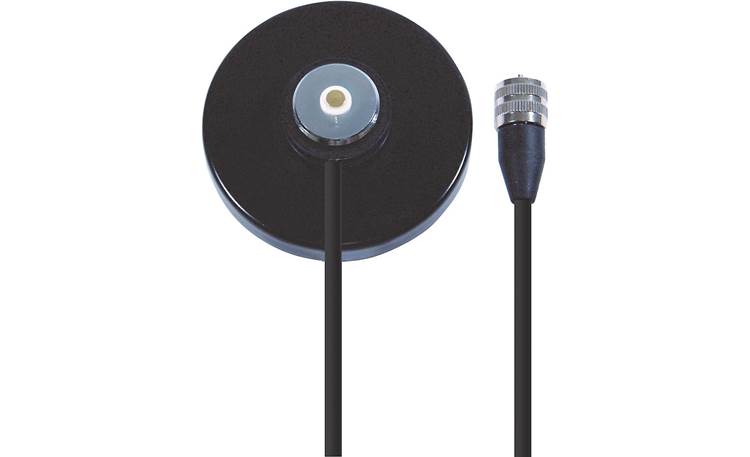

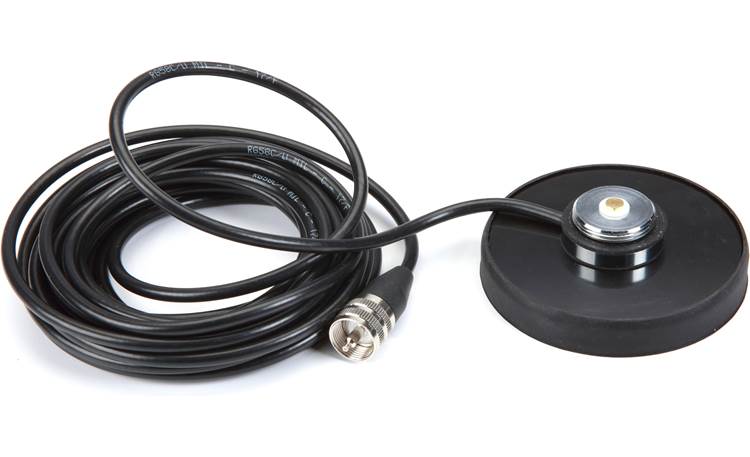

Midland MXTA12 MicroMobile Antenna NMO Mag Mount

The Midland MXTA12 MicroMobile Antenna NMO Mag Mount makes MicroMobile installation that much easier- it’s a drill-free, non-permeant solution with an NMO connector that allows users to simply screw on their GMRS antenna and attach to the back of the radio.

The MXTA12 is a magnetic mounting base for use with GMRS (General Mobile Radio Service) antennas that have an NMO type connector, such as the MXTA26 (sold separately) and all of Midland’s MicroMobile series antennas. The base is magnetic, for easy installation and removal.

• Includes rubber boot.
• Specific Frequency: 0 – 1000 MHz
• Mount Diameter: 3.5 in
• Cable Length: 6 meter (20ft) (included)
• Cable Type: RG-58A/U
• Antenna sold separately

The MXTA12 mount is compatible with NMO type antennas like the Midland MXTA25 Ghost 3dB and the Midland MXTA26 Whip 6dB.

Gain on a GMRS antenna refers to the increase in signal strength that the antenna provides compared to a standard reference antenna, typically measured in decibels (dB). Higher gain antennas can extend the range of communication by focusing the signal in specific directions, but they may also have limitations in obstructed environments. Lower gain antennas typically have a wider radiation pattern, which allows them to receive and transmit signals from multiple directions. In areas with obstacles like buildings or trees, a lower gain antenna can pick up signals that might be reflected or scattered, improving overall communication reliability. Higher gain antennas, while providing more focused signals over longer distances, may struggle in such environments due to their narrower beamwidth and sensitivity to obstructions.
