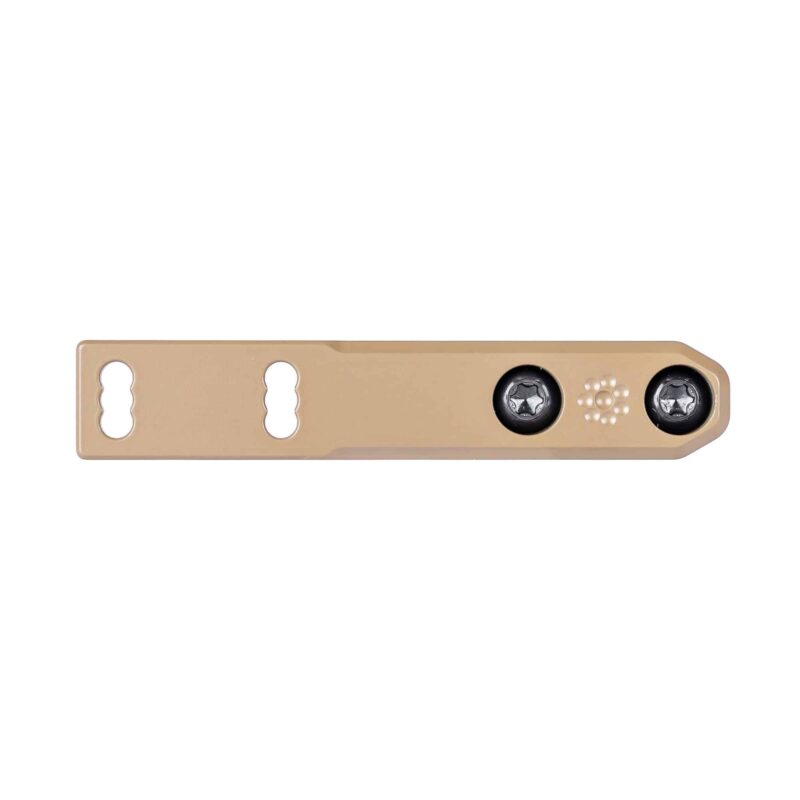

Arisaka Inline Scout Mount M-LOK

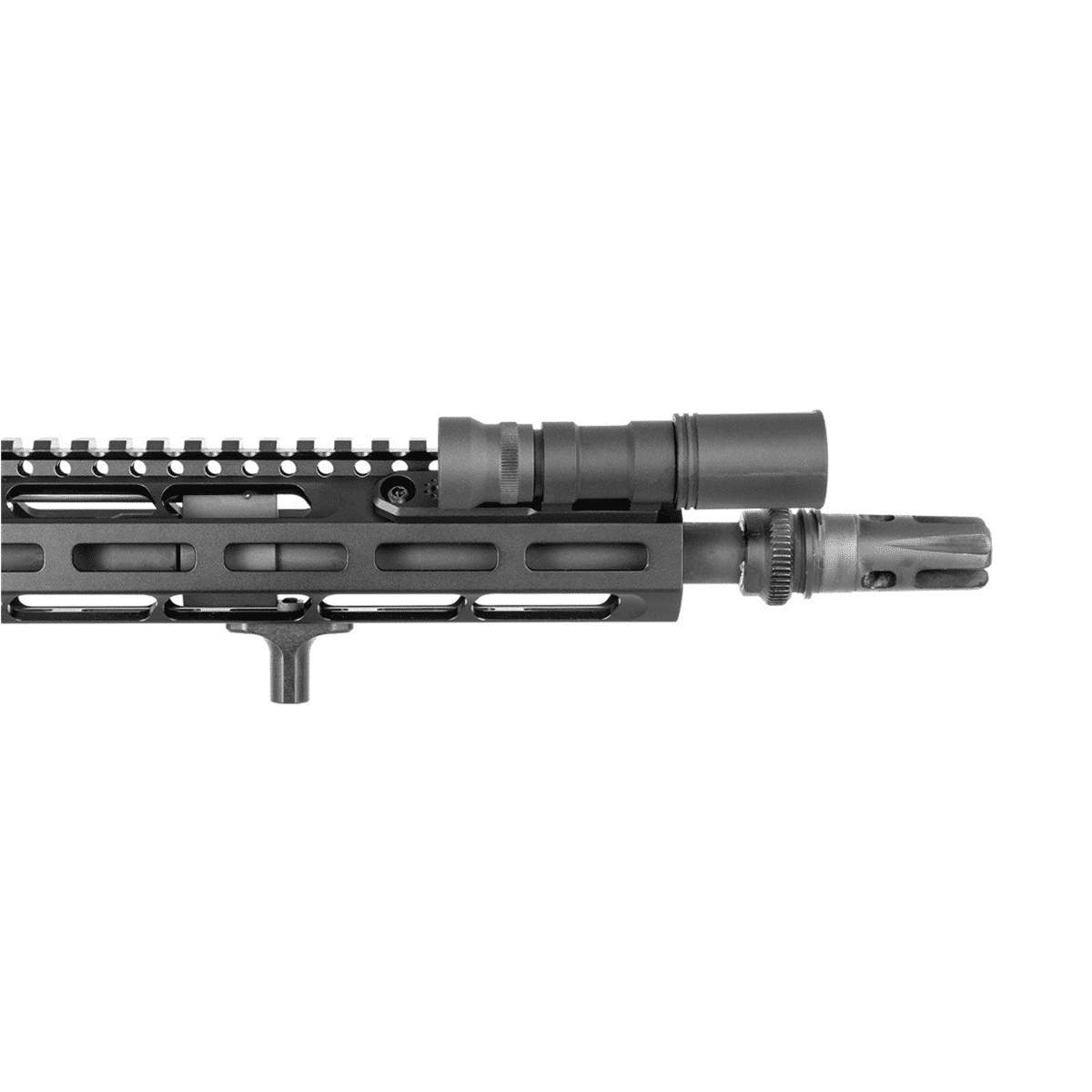

The Patented Arisaka Inline Scout Mount M-LOK is designed specifically for the Surefire Scout Light M600 and M300 series weapon lights, the Arisaka 300, 600 and 18650 Series Lights, Modlite OKW and PLH, Olight Odin, Cloud Defensive Rein and the Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser). It replaces the stock Picatinny rail adapter with a low profile mount for M-LOK handguards. The mount is especially useful on handguards that feature 45 degree angle mounting flats. When used on a 45 degree angle mounting flat, the Inline Scout Mount allows the user to position the light closer or farther away from the top 12 o’clock rail to give clearance for front sights or other accessories.

Specifications

• Length: 3.4″
• Height: 0.20″ (at Surefire Scout Light mounting point)
• Weight: 0.6 oz

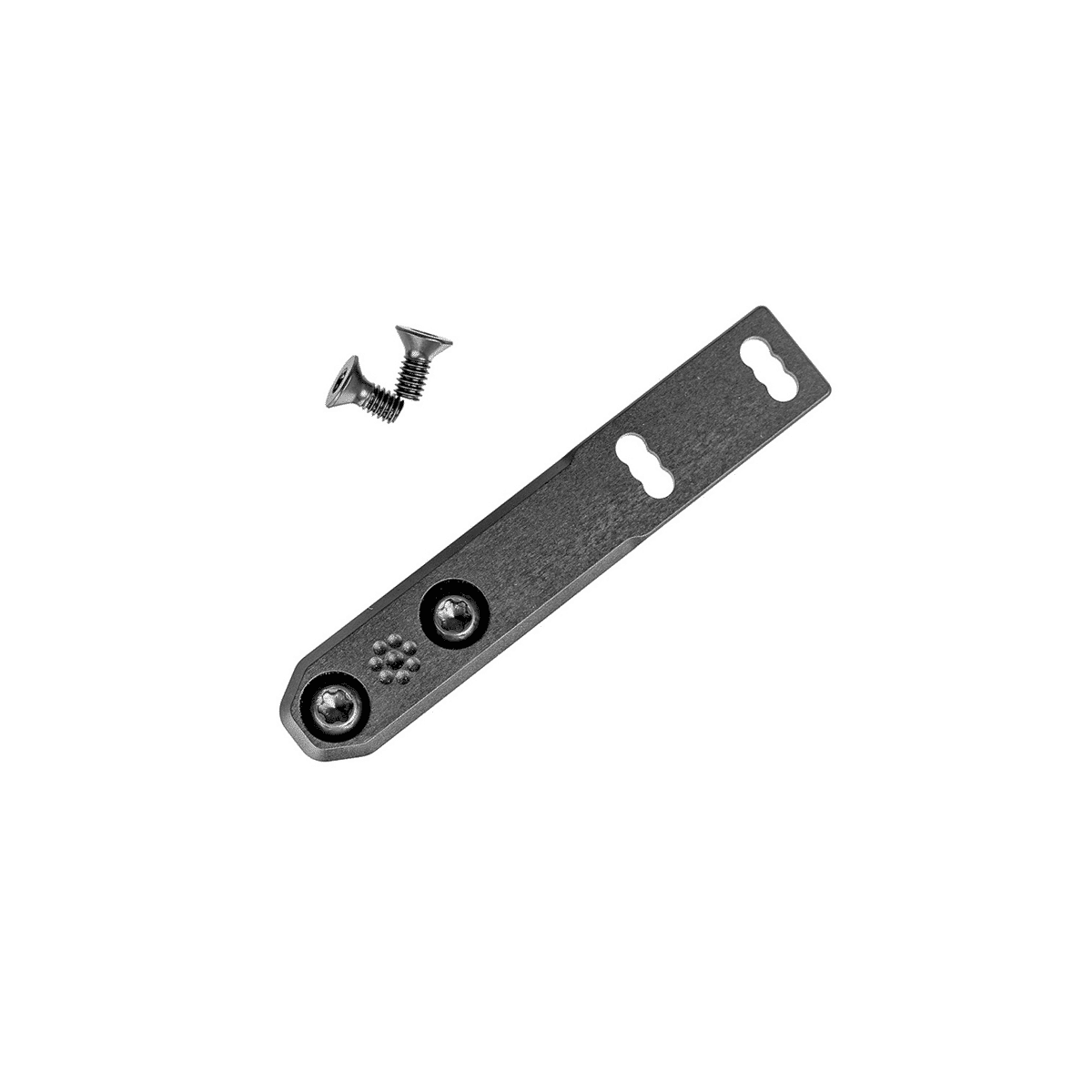

The mount is CNC machined from 7075-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount.

Installation Instructions
Installation requires a T20 Torx or IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with Loctite 222 or 243.

For detailed fitment and installation instructions click here.
